JIS F7367 Gate Valve
Materials of main parts
Body Material: Bronze
Disc Material: Bronze
Stem Material: Brass
Bonnet Material: Bronze
Overview
Application:This JIS F7367 Gate Valve is designed for marine applications involving oil, pulsation water, saturated steam, and non-shock water (up to 120°C).

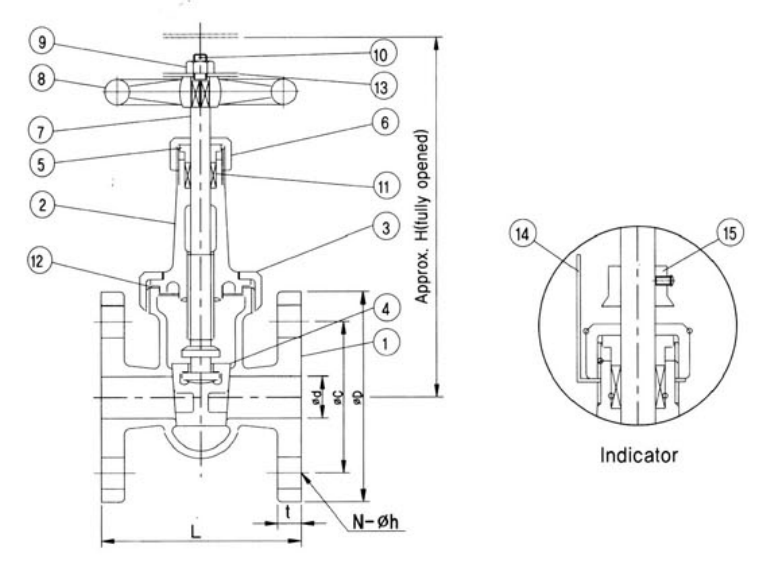

Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | BONNET | BRONZE |
3 | BONNET NUT | BRONZE |
4 | DISC | BRONZE |
5 | PACKING GLAND | BRONZE |
6 | PACKING GLAND NUT | BRASS |
7 | STEM | BRASS |
8 | HANDWHEEL | CAST IRON |
9 | HEXAGON NUT | BRASS |
10 | SPLIT PIN | BRASS |
11 | PACKING | NON ASBESTOS |
12 | GASKET | NON ASBESTOS |
13 | WASHER | STEEL |
14 | INDICATOR PLATE | BRASS |
15 | INDICATOR PIECE | BRASS |
Technical Specifications:
Model:JIS F7367 Gate Valve
Connection:JIS 5K
Pressure Ratings (Max Working Pressure Unit:kgf/cm²)
Rating | JIS 5K |
|---|---|
Oil and Pulsation water | 5 |
Saturated steam | 2 |
Non-Shock Water to 120°C | 7 |
Nominal Diameter:DN15~DN40
Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 5K
HYDROSTATIC PRESS TEST(SHELL)
10.5
HYDROSTATIC PRESS TEST(SEAT)
7
Connection Type: Union Bonnet Intergral seat, Rising Stem Flanged Ends.
Dimensions Specification:
Ød: Diameter
ØD: Outer Diameter.
ØC: Pitch Circle Diameter
N-Øh: Number and Diameter of Bolt Holes.
t: Flange Thickness.
L: Face-to-Face Length
H: Height.
DIMENSIONS(Unit:mm)
RATING | SIZE | Ød | ØD | ØC | N-Øh | L | L | H | weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
JIS F7367 | 15A | 15 | 80 | 60 | 4-Ø12 | 9 | 90 | 175 | 2.29 |
20A | 20 | 85 | 65 | 4-12 | 10 | 100 | 200 | 2.98 | |
25A | 25 | 95 | 75 | 4-12 | 10 | 110 | 220 | 4.1 | |
32A | 32 | 115 | 90 | 4-15 | 12 | 130 | 250 | 5.79 | |
40A | 40 | 120 | 95 | 4-15 | 12 | 140 | 290 | 7.78 |
