JIS F7366 Gate Valve
Materials of main parts
Body Material: Cast Steel
Disc Material: Cast Steel
Stem Material: Brass/Stainless Steel
Bonnet Material: Cast Steel
Overview
Application:This JIS F7366 Gate Valve is designed for marine applications involving oil, pulsation water, saturated steam, and non-shock water (up to 120°C).
Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | CAST STEEL |
2 | BONNET | CAST STEEL |
3 | STUFFING BOX | CAST STEEL |
4 | DISC | CAST STEEL |
5 | HANDWHEEL | CAST IRON |
6 | VALVE SEAT OF BODY | BRONZE / STAINLESS STEEL |
7 | VALVE SEAT OF DISC | BRONZE / STAINLESS STEEL |
8 | SCREWED PIECE | BRONZE / STAINLESS STEEL |
9 | GUIDE BUSH | BRONZE / STAINLESS STEEL |
10 | GUIDE BUSH | BRONZE / STAINLESS STEEL |
11 | PACKING GLAND | BRONZE |
12 | INDICATOR | BRASS |
13 | INDICATOR PLATE | BRASS |
14 | STEM | BRASS / STAINLESS STEEL |
15 | STUD BOLT | STEEL |
16 | STUD BOLT | STEEL |
17 | STUD BOLT | STEEL |
18 | TAPER PIN WITH THREAD | STAINLESS STEEL |
19 | HEXAGON NUT | STEEL |
20 | HEXAGON NUT | STEEL |
21 | HEXAGON NUT | STEEL |
22 | HEXAGON NUT | STEEL |
23 | HEXAGON NUT | STEEL |
24 | MACHINE SCREW | STEEL |
25 | SPLIT PIN | BRASS |
26 | PACKING | NON ASBESTOS |
27 | GASKET | NON ASBESTOS |
28 | GASKET | NON ASBESTOS |
29 | WASHER | STEEL |
Technical Specifications:
Model:JIS F7366 Gate Valve
Connection:JIS 10K
Pressure Ratings (Max Working Pressure Unit:kgf/cm²)
Rating | Up to 250A | 250A~400A |
|---|---|---|
Oil and Pulsation water | 10 | 10 |
Saturated steam | 7 | 5 |
Non-Shock Water to 120°C | 14 | 14 |
Nominal Diameter:DN50~DN400
Hydrostatic Test Pressure (kgf/cm²):
RATING
Up to 250A
300 to 400A HYDROSTATIC PRESS TEST(SHELL)
21
18 HYDROSTATIC PRESS TEST(SEAT)
15.4
13.2 Connection Type: Bolted Bonnet Renewable seat, Non Rising Stem Flanged Ends.

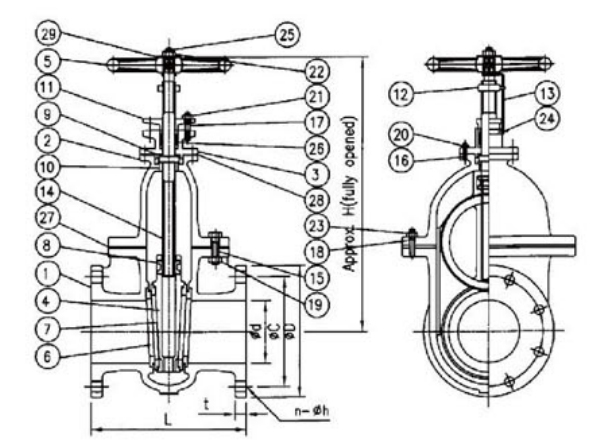

Dimensions Specification:
Ød: Diameter
ØD: Outer Diameter.
ØC: Pitch Circle Diameter
N-Øh: Number and Diameter of Bolt Holes.
t: Flange Thickness.
L: Face-to-Face Length
H: Height.
Dimension Table(Unit:mm)
Size | 50A | 65A | 80A | 100A | 125A | 150A | 200A | 250A | 300A | 350A | 400A |
|---|---|---|---|---|---|---|---|---|---|---|---|
Ød | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 335 | 380 |
ØD | 155 | 175 | 185 | 210 | 250 | 280 | 330 | 400 | 445 | 490 | 560 |
ØC | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 | 445 | 510 |
N-Øh | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-25 | 16-25 | 16-25 | 16-27 |
t | 16 | 18 | 18 | 18 | 20 | 22 | 22 | 24 | 24 | 26 | 28 |
L | 200 | 220 | 230 | 250 | 270 | 290 | 310 | 340 | 380 | 420 | 480 |
H | 300 | 350 | 400 | 450 | 520 | 580 | 700 | 840 | 960 | 1050 | 1150 |
Weight(Kg) | 17.1 | 26.5 | 31.5 | 44.9 | 63.2 | 82.3 | 130 | 203 | 291 | 368 | 507 |
