JIS F7364 Gate Valve
Materials of main parts
Body Material: Cast Iron
Disc Material: Cast Iron
Stem Material: Brass/Stainless Steel
Bonnet Material: Cast Iron
Overview
Application:This JIS F7364 Gate Valve is designed for marine applications involving oil, pulsation water, saturated steam, and non-shock water (up to 120°C).

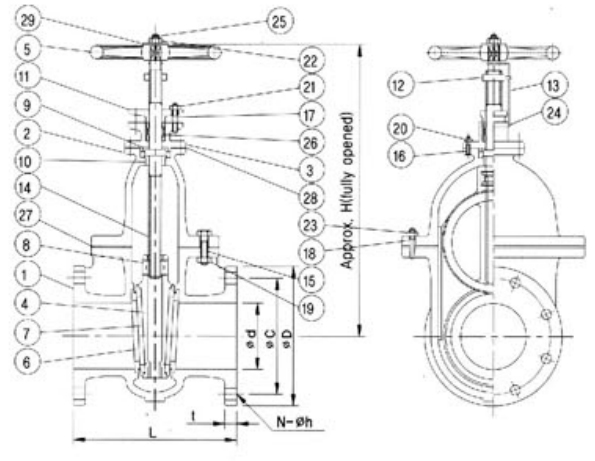

Material Specification:
NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | CAST IRON |
2 | BONNET | CAST IRON |
3 | STUFFING BOX | CAST IRON |
4 | DISC | CAST IRON |
5 | HANDWHEEL | CAST IRON |
6 | VALVE SEAT OF BODY | BRONZE / STAINLESS STEEL |
7 | VALVE SEAT OF DISC | BRONZE / STAINLESS STEEL |
8 | SCREWED PIECE | BRONZE / STAINLESS STEEL |
9 | GUIDE BUSH | BRONZE / STAINLESS STEEL |
10 | GUIDE BUSH | BRONZE / STAINLESS STEEL |
11 | PACKING GLAND | BRONZE |
12 | INDICATOR | BRASS |
13 | INDICATOR PLATE | BRASS |
14 | STEM | BRASS / STAINLESS STEEL |
15 | STUD BOLT | STEEL |
16 | STUD BOLT | STEEL |
17 | STUD BOLT | STEEL |
18 | TAPER PIN WITH THREAD | STAINLESS STEEL |
19 | HEXAGON NUT | STEEL |
20 | HEXAGON NUT | STEEL |
21 | HEXAGON NUT | STEEL |
22 | HEXAGON NUT | STEEL |
23 | HEXAGON NUT | STEEL |
24 | MACHINE SCREW | STEEL |
25 | SPLIT PIN | BRASS |
26 | PACKING | NON ASBESTOS |
27 | GASKET | NON ASBESTOS |
28 | GASKET | NON ASBESTOS |
29 | WASHER | STEEL |
Technical Specifications:
Model:JIS F7364 Gate Valve
Connection:JIS 10K
Pressure Ratings (Max Working Pressure Unit:kgf/cm²)
Rating | Up to 200A | 250A~400A | 450A~600A |
|---|---|---|---|
Oil and Pulsation water | 10 | 10 | 10 |
Saturated steam | 5 | 3 | 3 |
Non-Shock Water to 120°C | 14 | 14 | 12 |
Nominal Diameter:DN50~DN400
Hydrostatic Test Pressure (kgf/cm²):
RATING
JIS 10K
HYDROSTATIC PRESS TEST(SHELL)
10.5
HYDROSTATIC PRESS TEST(SEAT)
7
Connection Type: Union Bonnet Renewable seat, Non Rising Stem Flanged Ends.

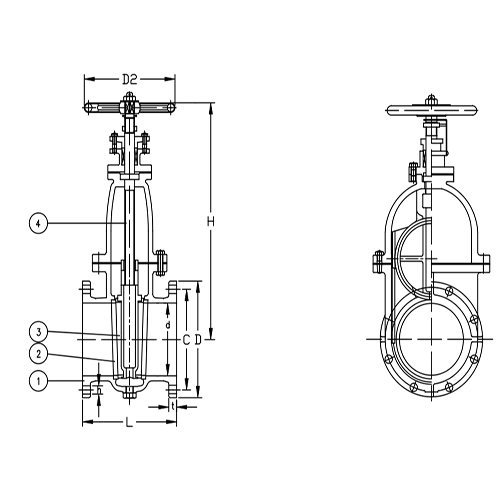

Dimensions Specification:
Ød: Diameter
ØD: Outer Diameter.
ØC: Pitch Circle Diameter
N-Øh: Number and Diameter of Bolt Holes.
t: Flange Thickness.
L: Face-to-Face Length
H: Height.
Dimension Tables(Unit:mm)
RATING | SIZE | Ød | ØD | ØC | N-Øh | t | L | H | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
JIS F7364 | 50 | 50 | 155 | 120 | 4-19 | 20 | 200 | 300 | 19.4 |
65 | 65 | 175 | 140 | 4-19 | 22 | 220 | 350 | 27.6 | |
80 | 80 | 185 | 150 | 8-19 | 22 | 230 | 400 | 33 | |
100 | 100 | 210 | 175 | 8-19 | 24 | 250 | 450 | 45.8 | |
125 | 125 | 250 | 210 | 8-23 | 24 | 270 | 520 | 65.9 | |
150 | 150 | 280 | 240 | 8-23 | 26 | 290 | 580 | 86 | |
200 | 200 | 330 | 290 | 12-23 | 26 | 320 | 700 | 136 | |
250 | 250 | 400 | 355 | 12-25 | 30 | 380 | 840 | 230 | |
300 | 300 | 445 | 400 | 16-25 | 32 | 440 | 960 | 331 | |
350 | 350 | 490 | 445 | 16-25 | 34 | 500 | 1050 | 433 | |
400 | 400 | 560 | 510 | 16-27 | 36 | 590 | 1150 | 597 |
