Application:This JIS F7360 Hull Gate Valve is designed for marine applications involving sea water and bilge.

Material Specification:

Technical Specifications:

• Model:JIS F7360 Hull Gate Valve

• Connection:JIS 10K

• Pressure Ratings (Max Working Pressure Unit:kgf/cm²)

  Fluid Condition	Max.Working Pressure(kgf/cm²)
  	JIS 10K(JIS F7360)
  	Up to 400A		450 to 500A
  	Class B	Class C	Class B	Class C
  Sea water and bilge	10	10	2	2

• Hydrostatic Test Pressure (kgf/cm²):

  RATING	JIS 10K(JIS F7360)
  SIZE	Up to 400A	450 to 500A
  HYDROSTATIC PRESS TEST (SHELL)	15	5
  HYDROSTATIC PRESS TEST (SEAT)	11	2.5

• Connection Type: Bolted Bonnet Renewable seat, Non Rising Stem Flanged Ends.

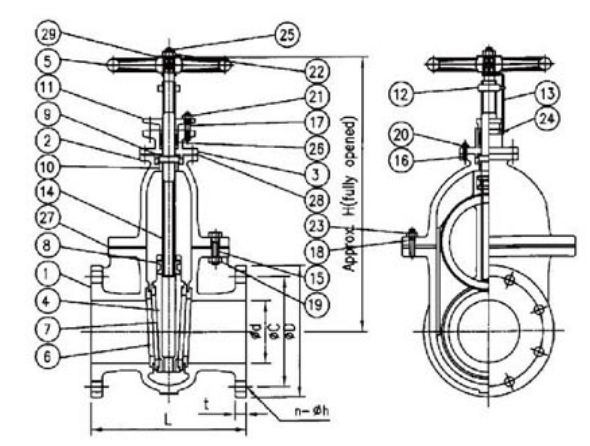

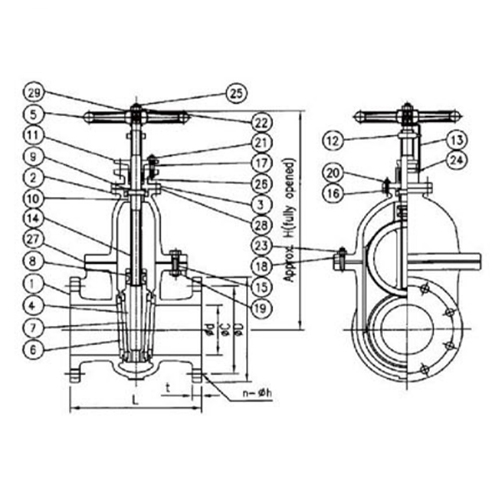

Dimensions Specification:

• Ød: Diameter

• ØD: Outer Diameter.

• ØC: Pitch Circle Diameter

• N-Øh: Number and Diameter of Bolt Holes.

• t: Flange Thickness.

• L: Face-to-Face Length

• H: Height.
