JIS F3019 Self Closing Gate Valve Heads for Sounding Pipe
Materials of main parts
Body Material: Bronze
Handle Material: Cast Iron
Gasket Material: Rubber
Overview
Application:This JIS F3019 Self Closing Gate Valve Heads for Sounding Pipe is designed for marine applications involving fresh water, sea water, lubricating oil and fuel oil.
Material Specification:

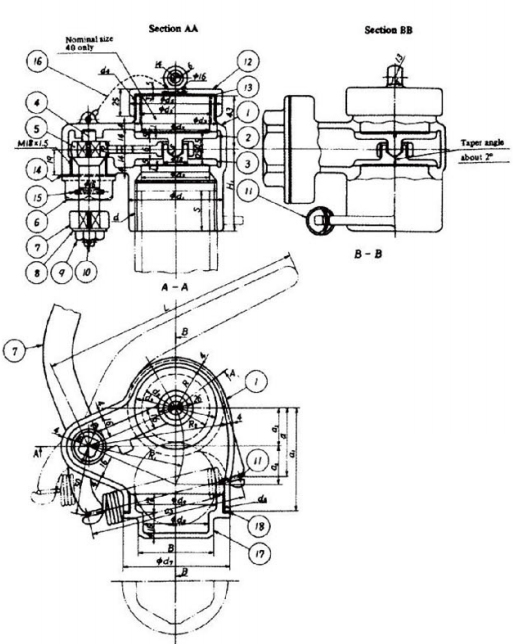

NO. | PARTS | MATERIAL |
|---|---|---|
1 | BODY | BRONZE |
2 | VALVE | BRONZE |
3 | VALVE | BRONZE |
4 | SPINDLE FOR HANDLE | BRASS |
5 | LEVER | BRONZE |
6 | PACKING GLAND | BRONZE |
7 | HANDLE | CAST IRON |
8 | WASHER* | BRASS PLATE |
9 | HEXAGON NUT | BRASS |
10 | SPLIT PIN | BRASS |
11 | COIL SPRING | PWB |
12 | CAP | BC6 |
13 | GASKET | RUBBER |
14 | GASKET | RUBBER |
15 | PACKING | RUBBER |
16 | CHIAN | BRASS |
17 | COVER | BRONZE |
18 | GASKET | RUBBER |
Technical Specifications:
Model: JIS F3019 Self Closing Gate Valve Heads for Sounding Pipe
Nominal Diameter: DN40~DN80
Hydrostatic Test Pressure (kgf/cm²):
BODY
3
FACING SUFACE
2
DIMENSIONS(Unit:mm)
NOMINAL DIA. | NOMINAL SIZE | ||
|---|---|---|---|
d | d4 | d6 | |
40 | G 1½ | G 1½ | M 60X2 |
50 | G 2 | G 2 | M 70X2 |
65 | G 2½ | ||
80 | G 3 | ||
